VectorField Class Reference

Vector field. More...

#include <vectorfield.hpp>

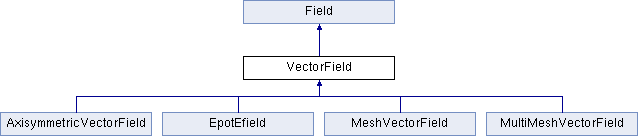

Inheritance diagram for VectorField:

Public Member Functions
virtual	~VectorField ()
	Virtual destructor. More...
virtual const Vec3D	operator() (const Vec3D &x) const =0
	Operator for getting field value at x. More...
void	get_minmax (const Mesh &mesh, double &min, double &max) const
	Search minimum and maximum vector length values of vector field at mesh nodes. More...
void	get_minmax (const Mesh &mesh, Vec3D &min, Vec3D &max) const
	Search minimum and maximum for each vector component at mesh nodes. More...
Public Member Functions inherited from Field
virtual	~Field ()
	Virtual destructor. More...

Detailed Description

Vector field.

Abstract base class for vector field implementations.

Constructor & Destructor Documentation

virtual VectorField::~VectorField ( )

inlinevirtual

Virtual destructor.

Member Function Documentation

void VectorField::get_minmax	(	const Mesh &	mesh,
		double &	min,
		double &	max
	)		const

Search minimum and maximum vector length values of vector field at mesh nodes.

void VectorField::get_minmax	(	const Mesh &	mesh,
		Vec3D &	min,
		Vec3D &	max
	)		const

Search minimum and maximum for each vector component at mesh nodes.

Return vector min with minimum components found and vector max with maximum components found.

virtual const Vec3D VectorField::operator() ( const Vec3D &  x ) const

pure virtual

Operator for getting field value at x.

Implemented in MeshVectorField, MultiMeshVectorField, EpotEfield, and AxisymmetricVectorField.

---

The documentation for this class was generated from the following files:

• vectorfield.hpp
• vectorfield.cpp
