ParticleDataBaseImp Class Reference

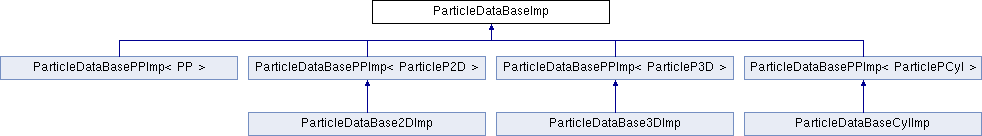

Inheritance diagram for ParticleDataBaseImp:

Public Member Functions
void	set_accuracy (double epsabs, double epsrel)
void	set_bfield_suppression (const CallbackFunctorD_V *functor)
void	set_trajectory_handler_callback (TrajectoryHandlerCallback *thand_cb)
void	set_trajectory_end_callback (TrajectoryEndCallback *tend_cb)
void	set_trajectory_surface_collision_callback (TrajectorySurfaceCollisionCallback *tsur_cb)
void	set_relativistic (bool enable)
void	set_surface_collision (bool surface_collision)
void	set_polyint (bool polyint)
bool	get_polyint (void) const
void	set_trajectory_interpolation (trajectory_interpolation_e intrp)
trajectory_interpolation_e	get_trajectory_interpolation (void) const
void	set_scharge_deposition (scharge_deposition_e type)
scharge_deposition_e	get_scharge_deposition (void) const
void	set_max_steps (uint32_t maxsteps)
void	set_max_time (double maxt)
void	set_save_all_points (bool save_points)
void	set_save_trajectories (uint32_t div)
uint32_t	get_save_trajectories (void) const
void	set_mirror (const bool mirror[6])
void	get_mirror (bool mirror[6]) const
int	get_iteration_number (void) const
double	get_rhosum (void) const
void	set_rhosum (double rhosum)
const ParticleStatistics &	get_statistics (void) const
virtual geom_mode_e	geom_mode () const =0
virtual size_t	size (void) const =0
virtual size_t	traj_size (uint32_t i) const =0
virtual double	traj_length (uint32_t i) const =0
virtual void	trajectory_point (double &t, Vec3D &loc, Vec3D &vel, uint32_t i, uint32_t j) const =0
virtual void	trajectories_at_plane (TrajectoryDiagnosticData &tdata, coordinate_axis_e axis, double val, const std::vector< trajectory_diagnostic_e > &diagnostics) const =0
virtual void	clear (void)=0
virtual void	clear_trajectories (void)=0
virtual void	clear_trajectory (size_t a)=0
virtual void	reserve (size_t size)=0
virtual void	build_trajectory_density_field (MeshScalarField &tdens) const =0
virtual void	iterate_trajectories (MeshScalarField &scharge, const VectorField &efield, const VectorField &bfield)=0
virtual void	step_particles (MeshScalarField &scharge, const VectorField &efield, const VectorField &bfield, double dt)=0
void	debug_print (std::ostream &os) const

Protected Member Functions
	ParticleDataBaseImp (ParticleDataBase *pdb, const Geometry &geom)
	ParticleDataBaseImp (ParticleDataBase *pdb, std::istream &s, const Geometry &geom)
	ParticleDataBaseImp (const ParticleDataBaseImp &pdb)
const ParticleDataBaseImp &	operator= (const ParticleDataBaseImp &pdb)
void	save (std::ostream &os) const

Static Protected Member Functions
static double	energy_to_velocity (double E, double m)
	Convert energy to velocity. More...

Protected Attributes
const Geometry &	_geom
double	_epsabs
	Absolute error limit for calculation. More...
double	_epsrel
	Relative error limit for calculation. More...
trajectory_interpolation_e	_intrp
	Trajectory interpolation type. More...
scharge_deposition_e	_scharge_dep
	Space charge deposition type. More...
uint32_t	_maxsteps
	Maximum number of steps to calculate. More...
double	_maxt
	Maximum particle time in simulation. More...
bool	_save_points
	Save all points? More...
uint32_t	_trajdiv
	Divisor for saved trajectories, if 3, every third trajectory is saved. More...
bool	_mirror [6]
	Boundary particle mirroring. More...
double	_rhosum
	Sum of space charge density in defined beams (C/m3). More...
ParticleStatistics	_stat
	Particle statistics. More...
uint32_t	_iteration
	Iteration number. More...
bool	_relativistic
	Relativistic particle iteration. More...
bool	_surface_collision
	Surface collision model. More...
const CallbackFunctorD_V *	_bsup_cb
	Location dependent magnetic field suppression. More...
TrajectoryHandlerCallback *	_thand_cb
	Trajectory handler callback. More...
TrajectoryEndCallback *	_tend_cb
	Trajectory collision callback. More...
TrajectorySurfaceCollisionCallback *	_tsur_cb
	Trajectory surface collision callback. More...
ParticleDataBase *	_pdb
	Particle database pointer. More...

Member Function Documentation

double ParticleDataBaseImp::energy_to_velocity ( double  E, double  m  )

staticprotected

Convert energy to velocity.

Energy E given in Joules and mass m in kg.

Member Data Documentation

const CallbackFunctorD_V* ParticleDataBaseImp::_bsup_cb

protected

Location dependent magnetic field suppression.

double ParticleDataBaseImp::_epsabs

protected

Absolute error limit for calculation.

double ParticleDataBaseImp::_epsrel

protected

Relative error limit for calculation.

trajectory_interpolation_e ParticleDataBaseImp::_intrp

protected

Trajectory interpolation type.

uint32_t ParticleDataBaseImp::_iteration

protected

Iteration number.

uint32_t ParticleDataBaseImp::_maxsteps

protected

Maximum number of steps to calculate.

double ParticleDataBaseImp::_maxt

protected

Maximum particle time in simulation.

bool ParticleDataBaseImp::_mirror[6]

protected

Boundary particle mirroring.

ParticleDataBase* ParticleDataBaseImp::_pdb

protected

Particle database pointer.

bool ParticleDataBaseImp::_relativistic

protected

Relativistic particle iteration.

double ParticleDataBaseImp::_rhosum

protected

Sum of space charge density in defined beams (C/m3).

bool ParticleDataBaseImp::_save_points

protected

Save all points?

scharge_deposition_e ParticleDataBaseImp::_scharge_dep

protected

Space charge deposition type.

ParticleStatistics ParticleDataBaseImp::_stat

protected

Particle statistics.

bool ParticleDataBaseImp::_surface_collision

protected

Surface collision model.

TrajectoryEndCallback* ParticleDataBaseImp::_tend_cb

protected

Trajectory collision callback.

TrajectoryHandlerCallback* ParticleDataBaseImp::_thand_cb

protected

Trajectory handler callback.

uint32_t ParticleDataBaseImp::_trajdiv

protected

Divisor for saved trajectories, if 3, every third trajectory is saved.

TrajectorySurfaceCollisionCallback* ParticleDataBaseImp::_tsur_cb

protected

Trajectory surface collision callback.

---

The documentation for this class was generated from the following files:

• particledatabaseimp.hpp
• particledatabaseimp.cpp
